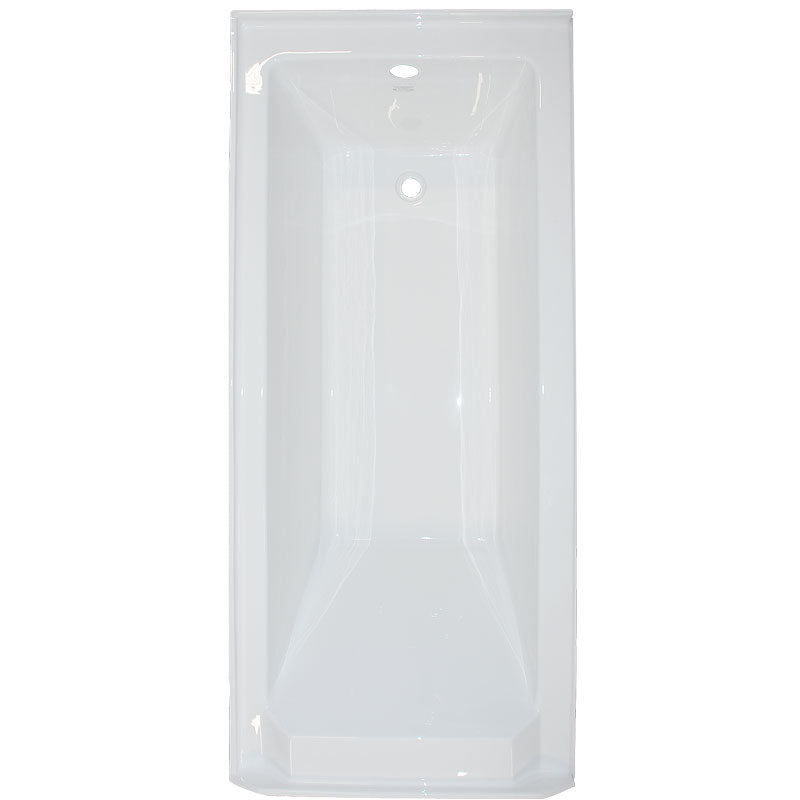

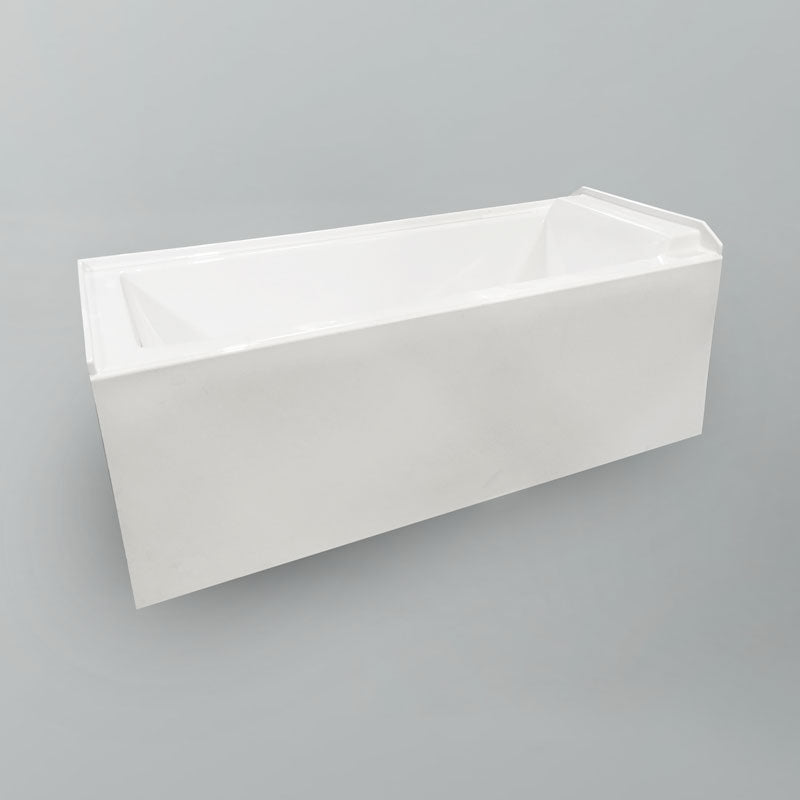

Acritec Victory 6028 Alcove Bathtub – 60 x 28 in. – Narrow 28 in. Width

The Acritec Victory 6028 Alcove Bathtub is a 60 x 28 in. narrow-width tub built for contractors and motivated retail buyers who need a 5 ft. alcove solution where standard 30 or 32 in. tubs will not fit. This 100% cast acrylic with fiberglass and wood reinforcement tub features a 13 in. immersion depth and is compatible with above-floor rough-in installations.

Features

• 100% cast acrylic with fiberglass and wood reinforcement
• 28 in. narrow width — fits alcoves where standard 30 or 32 in. tubs will not
• End drain (all alcove tubs)
• Single tiling flange
• Above-floor rough-in compatible
• Leveling feet included
• Optional removable access panel Part# 41990 available
• Can be upgraded with lateral air, HydroMassage (6 or 8 jet), Chromatherapy, VIBE Sound System, and ComfortWarm

Specifications

• Dimensions: 59 7/8 in. L x 28 in. W x 21 in. H
• Immersion depth: 13 in.
• Material: 100% cast acrylic with fiberglass and wood reinforcement
• Color: White
• SKU: Left-hand drain 41131 | Right-hand drain 41132

Fit & Compatibility

• Requires a minimum alcove rough-in of 60 x 28 in.
• Narrower than standard — verify your alcove before ordering
• Left-hand drain (41131): drain on the left when standing outside the tub facing it
• Right-hand drain (41132): drain on the right when standing outside the tub facing it
• Verify minimum doorway opening of 32 in. for delivery access
• Flange type: Single tiling flange

Installation Requirements

• Leveling feet must contact the subfloor evenly on all points before securing
• Optional removable access panel (Part# 41990) recommended if jetting upgrades are installed
• Acrylic surface: use non-abrasive cleaners only to avoid scratching
• No electrical required for standard tub; lateral air or HydroMassage upgrades require a dedicated 15 amp GFI breaker

Shipping

• Ships LTL freight from Langley, BC
• Wooden crating required — boxing fee applies
• Liftgate and residential delivery surcharges apply where required
• Freight quoted per order — contact us before purchasing

Warranty & Returns

• Residential: 10-year limited warranty against manufacturer's defects from date of purchase
• Applies to original purchaser with proof of purchase from an authorized Acritec dealer
• Acritec will repair, replace, or refund at their discretion up to the original purchase price — does not include transport, removal, or reinstallation costs
• Not covered: shipping or handling damage, misuse, improper installation, alterations, freezing, chemical corrosion, improper water chemistry, normal wear and tear, colour fading
• Inspect on delivery — all freight damage must be reported to the carrier immediately; installing a damaged product voids the warranty
• Manufacturer's defects must be reported to Acritec before installation
• To submit a claim: email RGA@acritec.com with proof of purchase, model number, description of defect, and photos
• Returns: These are large freight items shipped to order — no returns for change of mind or incompatibility with existing space. Contact us before purchasing if you have questions about fit.

Documents

• Specification Sheet
• Alcove Installation Guide
